How do I make a beam deviation of 90 degrees in an XU through-beam photoelectric sensor?

Company: Schneider Telemecanique

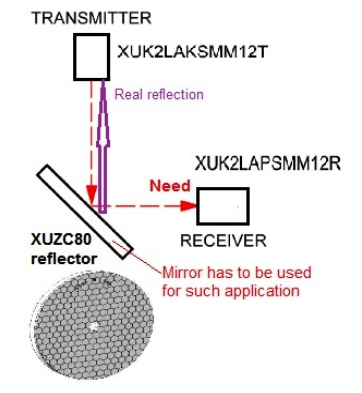

You need to use a mirror device as a reflector can’t deviate the beam. Please see the attached image.
