How do I set up the Schneider XUZX2000 fixing bracket on the XUX photoelectric sensor?

Company: Schneider Telemecanique

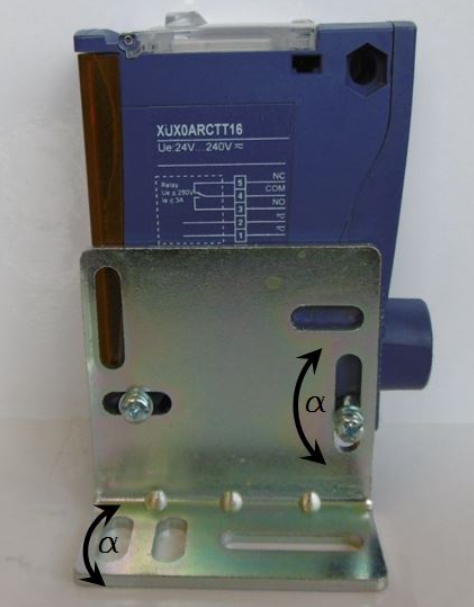

Please see the attached image. The XUZX2000 fixing bracket is only for the photoelectric sensor XUX compact design, which has dimensions of 92x71mm.
